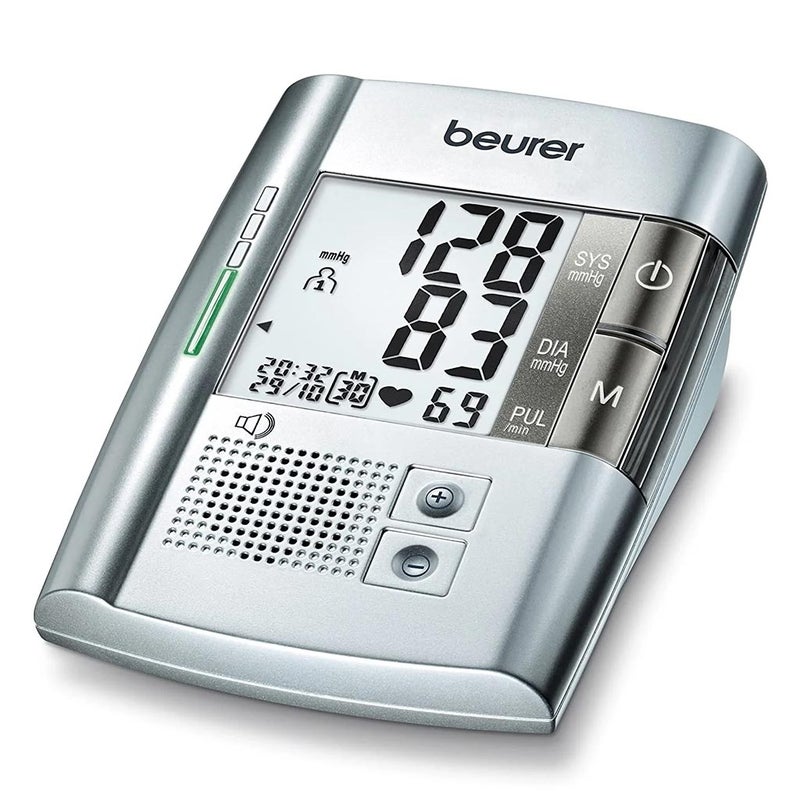

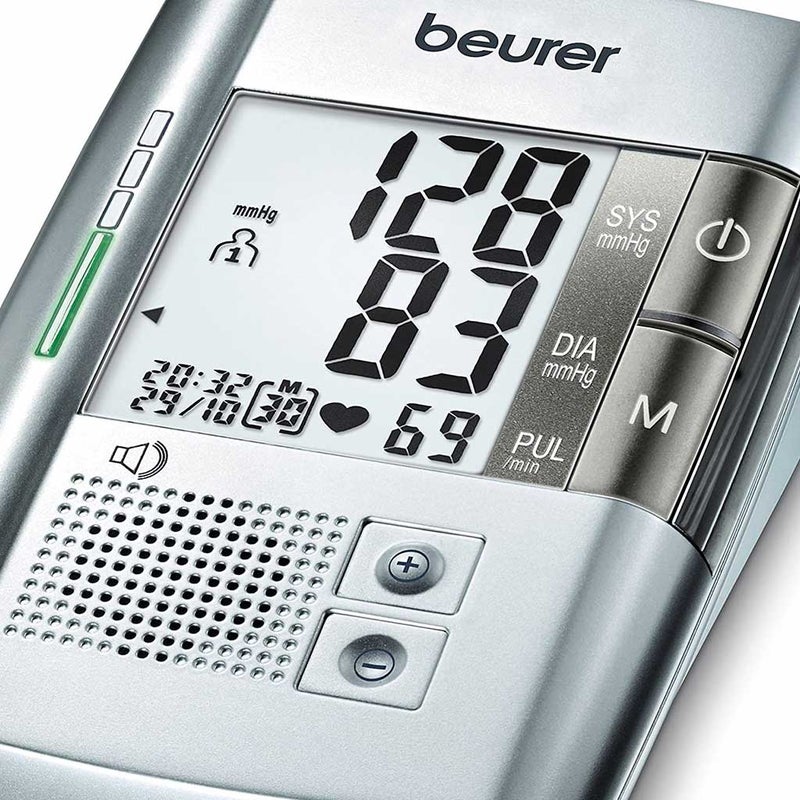

The upper arm blood pressure monitor is used for non¬invasive measurement and monitoring of adults' arterial blood pressure.
BENEFITS
This instrument can identify possible heart rhythm disturbance during measurement and if necessary indicates the measurement
Use it to measure your blood pressure quickly and easily
Stores the results and displays the progression of readings together with the average
Suitable for upper arm circumferences 22-30 cm
The device also has an acoustic voice output
HOW TO USE
Positioning cuff

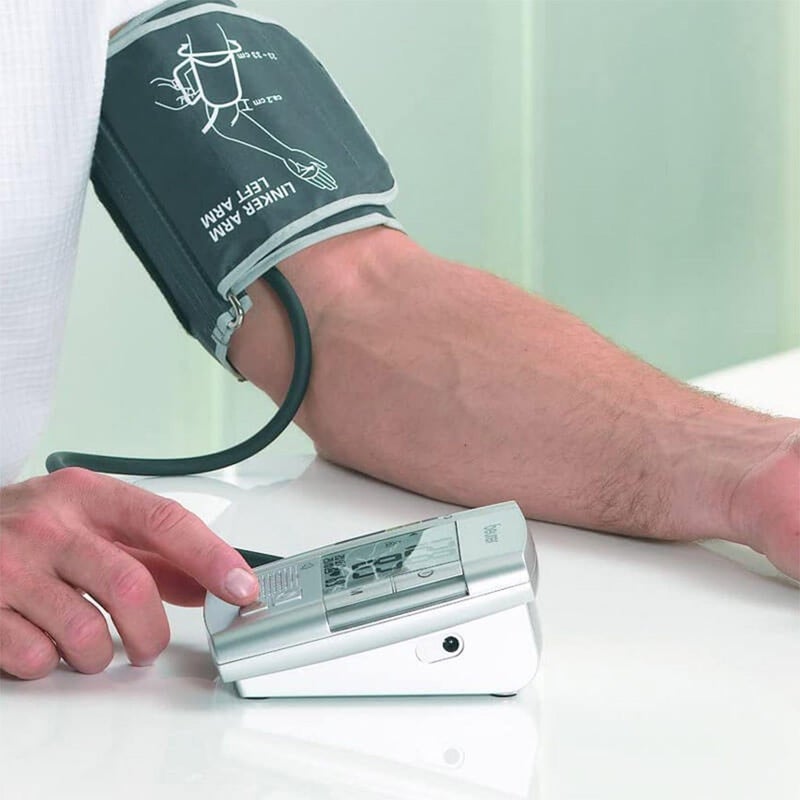

Fit the cuff round your bare left upper arm. Blood circulation in the arm should not be restricted by tight clothing or other objects
The cuff should be placed on the upper arm so that the lower edge is 2 to 3 cm above the bend of the elbow and above the artery. The tube should be in line with the centre of the palm. Now place the free end of the cuff snugly, but not too tightly, around the arm, and fix it with the Velcro fastener. The cuff should be fitted tight enough to allow just two fingers to fit beneath the cuff. Insert the cuff tubing into the socket for the cuff attachment
Rest for approx. 5 minutes before each measurement. Other-wise there may be divergences
You can perform the measurement either sitting or lying down. Always make sure that the cuff is on a level with your heart
In order not to distort the result, it is important to keep still during the measurement and not talkMeasuring blood pressure
Put on the cuff as described previously and assume the position in which you want to carry out the measurement
Start the measurement process by pressing ON/OFF button. After checking the display with all digits lighting up, the monitor will automatically inflate. Following the self-test, during which all display elements briefly appear, the measurement begins. During inflation the device already determines measured values used to estimate the required inflation pressure. If this pressure is insufficient, the device automatically inflates by another 40 mmHg
Then the pressure in the cuff is slowly released and the pulse is measured

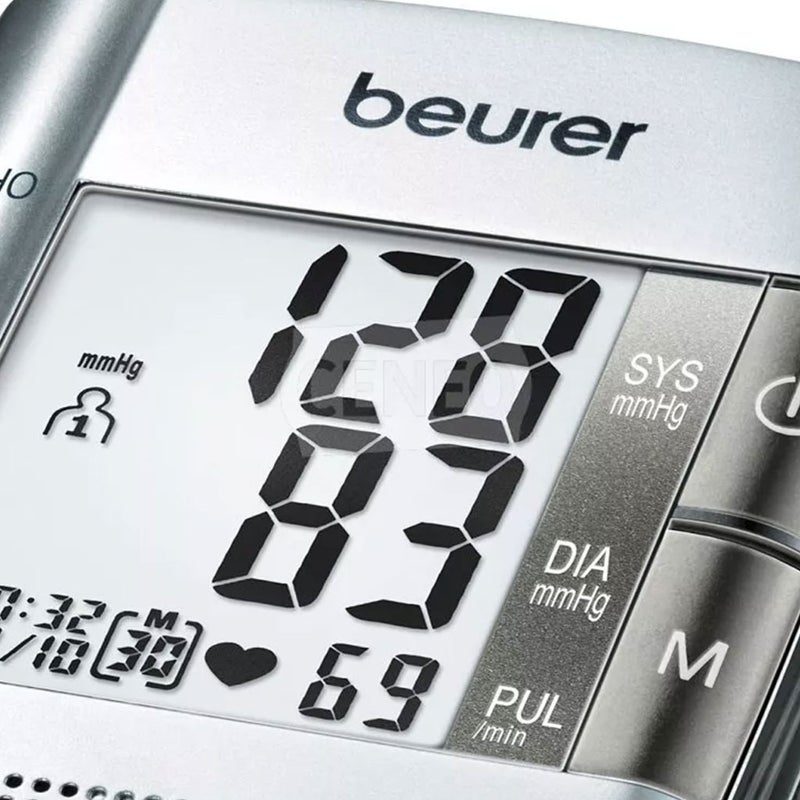

When the measurement has been completed, the remaining air pressure is released very quickly. The pulse, the systolic and the diastolic blood pressure are displayed
You can adjust the volume during the announcement by pressing + and �
You can interrupt measurement at any time by pressing the ON/OFF button
The icon appears if it has not been possible to perform the measurement properly. Observe the section in these instructions on error messages/troubleshooting and repeat the measurement
The device switches off automatically after 1 minute. Wait at least 5 minutes before taking another measurement
For detailed instruction, kindly read the manual carefully before use
